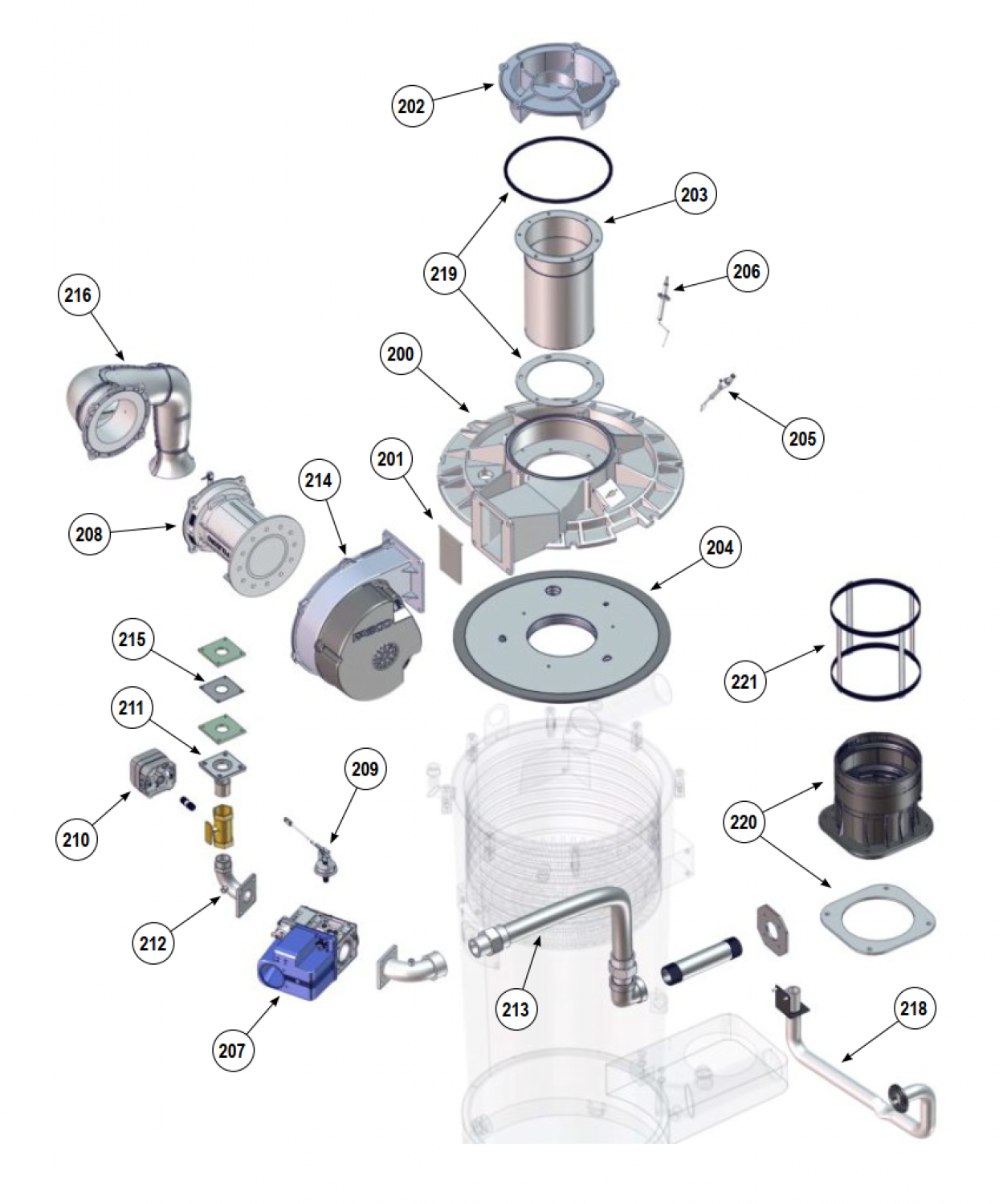

Combustion, Condensate

+ −

Index

Part No.

200

384-000-343 Kit - Service Cover Plate

201

384-000-344 Kit – Service Door Flap

202

384-000-345 Kit – Service Cover Plate, Top

204

384-000-347 Kit - Service Refractory

205

384-000-348 Kit – Service Ignitor

206

384-000-349 Kit - Service Flame Sense Rod

207

383-600-066 Gas Valve Replacement Kit

208

384-000-350 Kit - Service NG Mixer

209

384-000-351 Kit – Service Low Pressure Gas Switch

210

384-000-352 Kit - Service High Pressure Gas Switch

211

384-000-115 Kit - Service Gas Pipe Flange, Straight

212

384-000-353 Kit – Service Gas Pipe to Venturi

213

384-000-354 Kit – Service Gas Pipe

214

384-000-355 Kit - Service Blower 7.0H

216

384-000-360 Kit – Service Silencer

217

384-000-364 Kit – Service Ignitor Cable Not shown

218

384-000-387 Kit – Service Condensate Trap Assembly

219

384-000-386 Kit – Service Burner Gaskets Also included in the annual maintenance kit

220

384-000-388 Kit - Service 3:1 Adapter One adapter and gasket included
Used on flue and intake

221

540-133-012 Kit - Service Flue Support Clamp
