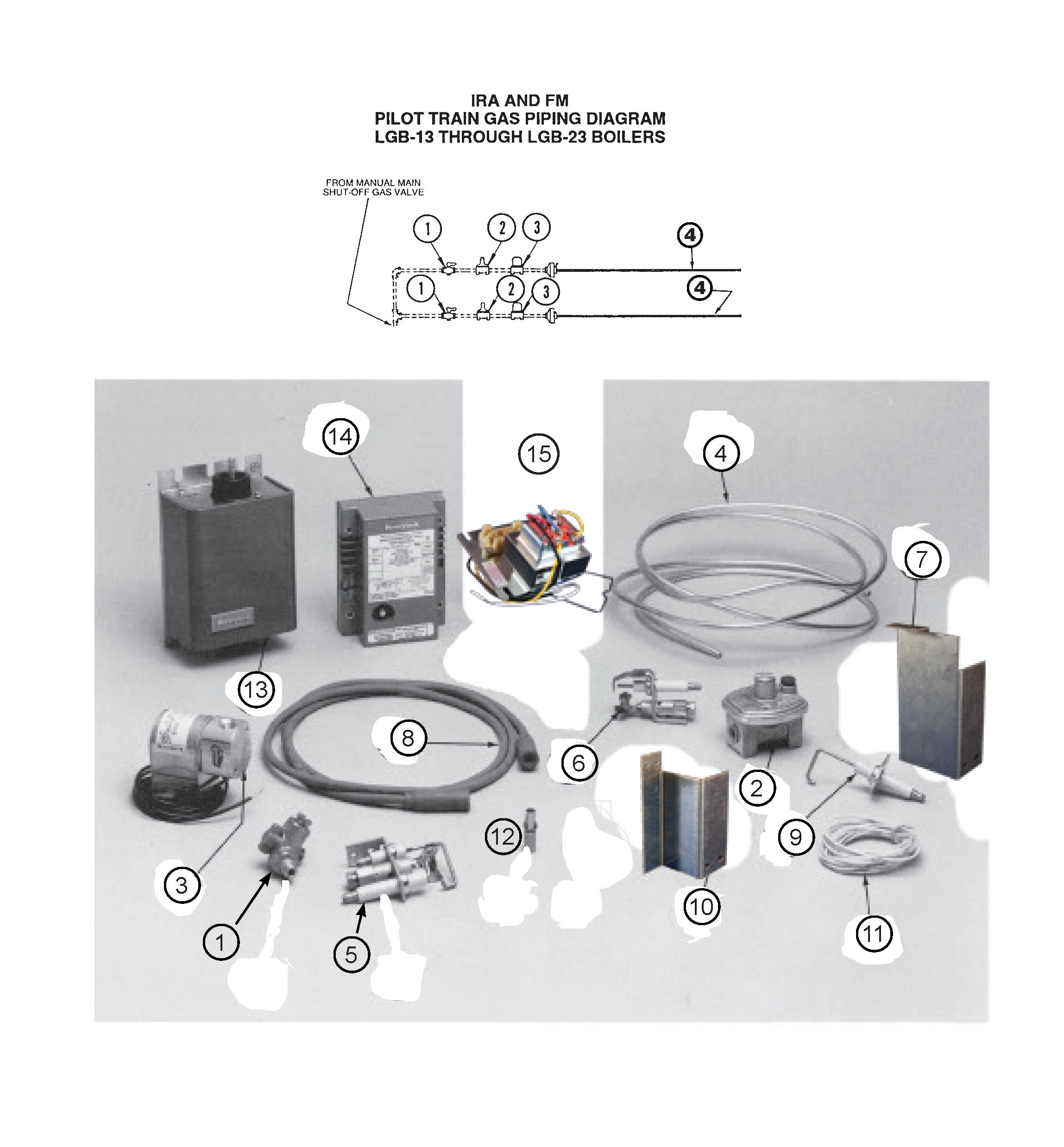

LGB-14 IRI / FM Pilot Gas Control Train / Flame Sensing Parts - 2 Drawing
Index
Part No.
IRI And FM Pilot Line Gas Train Components
1
1
511-246-345 Pilot Line Manual Shut-Off Gas Valve, ¼" N.P.T. Male x ¼" N.P.T. Female QTY 2
2
2
510-933-195 Pilot Line Gas Pressure Regulating Valve, 3.5-7.0" W.C. Outlet Adjustment Range, ¼" N.P.T. QTY 2
3
3
511-044-040 Pilot Line Solenoid Gas Valve, Quick Opening, 120 Volt, ¼" N.P.T. QTY 2
4
4
560-742-915 Pilot Line Aluminum Tubing, ¼" O.D. x 100" Coil QTY 2
IRI And FM Pilots, Flame Sensing And Ignition Components
5
511-330-181
5
511-330-181 Combination Pilot Burner With Flame Rod, Ignition Electrode, and Natural Gas Orifice, 0.026" Dia. QTY 1
511-330-181
6
6
511-330-170 Combination Pilot Burner With Ignition Sensing Electrode, Natural Gas Orifice and Ignition Wire QTY 1
7
7
460-005-624 Pilot Burner Mounting Bracket QTY 2
8
8
591-391-798 Ignition Cable, 36" Long, For Q179C Pilot QTY 1
9
511-724-274
9
511-724-274 Main Flame Sensor QTY 1
511-724-274
10
10
423-300-420 Main Flame Sensor Mounting Bracket QTY 1
11
11
590-849-236 Flame Rod Cable For Main Flame Sensor and Q179C Pilot QTY 4
Feet Required
12
12
591-850-140 Rajah Connector, Female, Connects Sensing Cable To Q179C Pilot QTY 1
Connects Sensing Cable To Q179C Pilot
13
13
511-802-625 Ignition Transformer, 120 Volt, 6,000 Volt Output QTY 1
14
14
510-811-456 Universal Control System QTY 1
Includes: Control Panel, 2 Ignition/Sensing Control Modules, Pilot Burner Assembly, Wiring Harness and Ignition Cable
15
510-312-166
15
510-312-166 Control Transformer/Relay Receptacle 120/24 Volt, 40 VA QTY 1
Plate Mounted, for Universal Control System (UCS) Ignition Sensing Control
510-312-166
