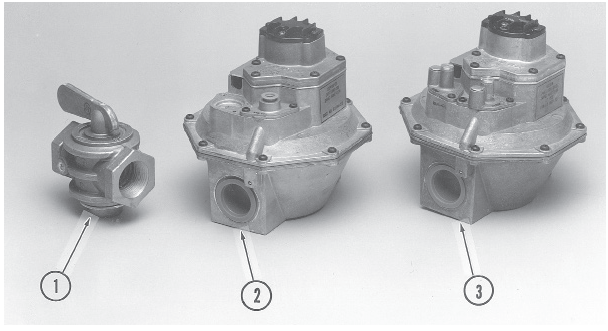

Main Gas Control Train Parts (5" W.C. Natural Gas)
+
−
Index
Part No.
1
1
511-246-305
Manual Main Shut-Off Gas Valve, 2" N.P.T.
Manual
With Downstream Pressure Tapping, ⅛" N.P.T.
With Downstream Pressure Tapping, ⅛" N.P.T.
2
2
511-044-193
Gas Valve Without Regulator 1-1/2” Honeywell V8943A1129
3
3
511-044-216
Combination Gas Control Valve, 1½" N.P.T., 24 Volt,
With Low Fire Operator, High fire Operator, Main Pressure Regulator and ⅛" N.P.T. Downstream Pressure Tapping
511-624-555
High Gas Pressure Switch
Not Shown
High Gas Pressure Switch, SPDT, Manual Reset, Lockout on Pressure Rise, Diaphragm Type 3.0-21.0" W.C. Range, 1.0-3.0" W.C. Differential, ¼" N.P.T. Female Vent Connector, With Switch Position Indicator
2 Required
High Gas Pressure Switch, SPDT, Manual Reset, Lockout on Pressure Rise, Diaphragm Type 3.0-21.0" W.C. Range, 1.0-3.0" W.C. Differential, ¼" N.P.T. Female Vent Connector, With Switch Position Indicator
2 Required
