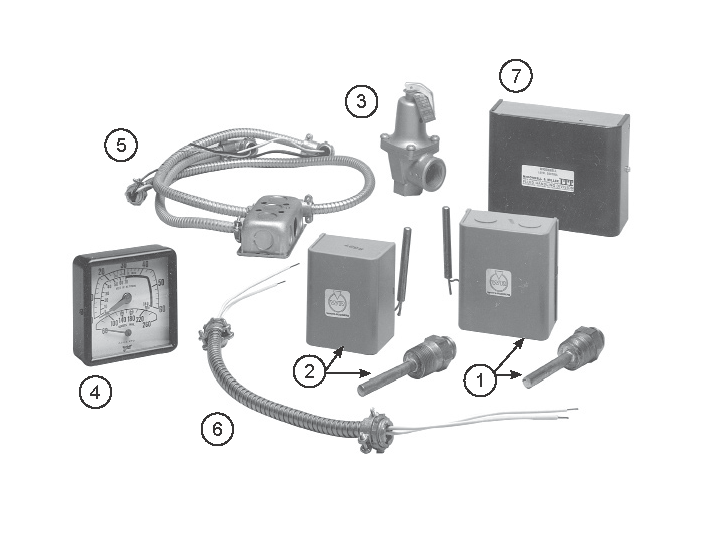

Water Trim

510-312-065 Combination Operating and High Limit Control DPST, Automatic Recycle, Less Well. Operating Limit: 100 - 220º Range With 10-35ºF Adjustable Subtractive Differential. High Limit: 140-240ºF Range With 10ºF Fixed Subtractive Differential.

383-600-093 ASME Pressure Relief Valve Set To Relieve At 30 PSIG, 1¼ " N.P.T. Male Inlet x 1½" N.P.T. Female Outlet; Side Outlet Type

510-218-065 Combination Pressure-Temperature Gauge, 0-50 PSIG, 60-260ºF Back Connection, ½" N.P.T.

591-319-801 Water Trim Wiring Harness

511-114-528 Electrode Type Low Water Cut-Off, 120 Volt SPDT, Automatic Recycle, 160 PSIG Rated, ½" N.P.T. Male Electrode

592-300-006 Well, ¾" N.P.T Not shown
