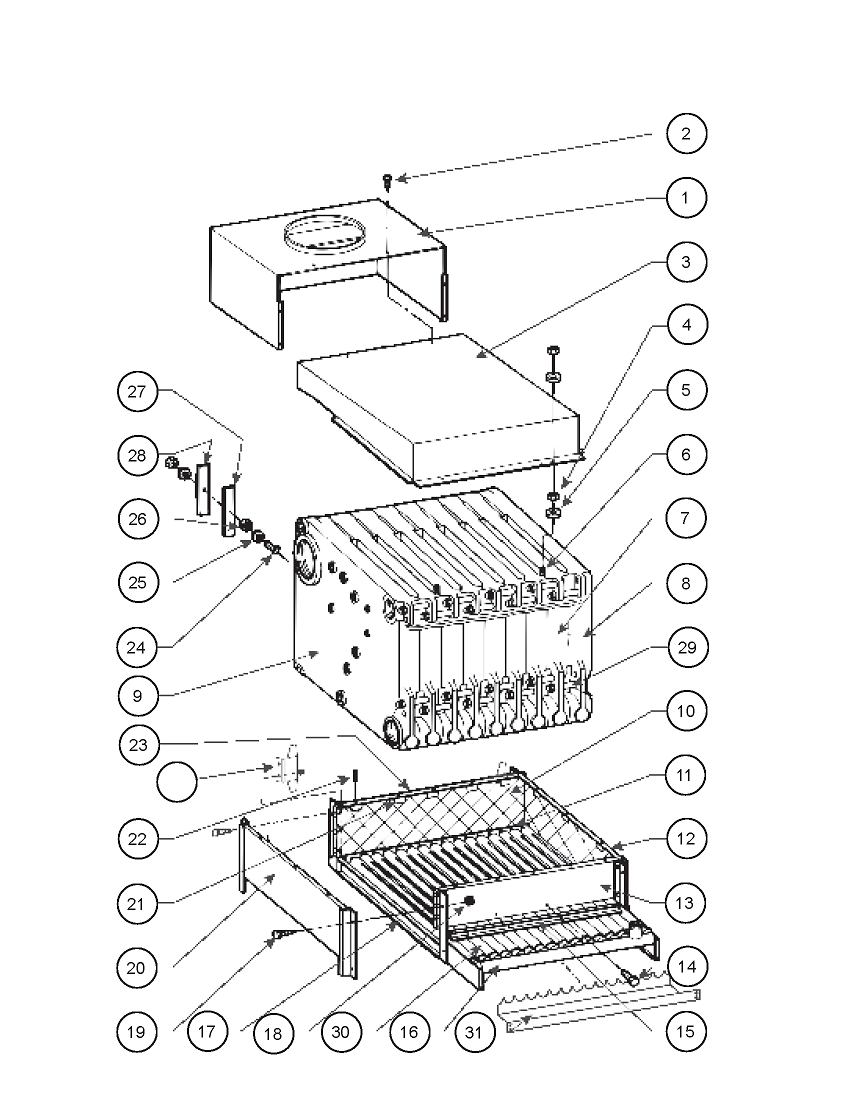

Section/Base Assembly
+
−
Index
Part No.
7
7
313-300-110
Regular Intermediate Section - 3315 - 80 P.S.I.
8
8
313-300-111
Right Hand End Section - 3318 - 80 P.S.I.
9
9
313-300-109
Left Hand End Section - 3314 - 80 PSI
10
10
591-221-336
Base Insulation Front
Left Base Designator
Both a front and a rear insulation piece must be ordered now, instead of a set.
Both a front and a rear insulation piece must be ordered now, instead of a set.
10
10
591-221-337
Base Insulation Rear
Left Base Designator
Both a front and a rear insulation piece must be ordered now, instead of a set.
Both a front and a rear insulation piece must be ordered now, instead of a set.
10
10
591-221-342
Base Insulation Front
Left Base Designator
Both a front and a rear insulation piece must be ordered now, instead of a set.
Both a front and a rear insulation piece must be ordered now, instead of a set.
10
10
591-221-343
Base Insulation Rear
Left Base Designator
Both a front and a rear insulation piece must be ordered now, instead of a set.
Both a front and a rear insulation piece must be ordered now, instead of a set.
10
10
591-221-336
Base Insulation Front
Right Base Designator
Both a front and a rear insulation piece must be ordered now, instead of a set.
Both a front and a rear insulation piece must be ordered now, instead of a set.
10
10
591-221-337
Base Insulation Rear
Right Base Designator
Both a front and a rear insulation piece must be ordered now, instead of a set.
Both a front and a rear insulation piece must be ordered now, instead of a set.
10
10
591-221-342
Base Insulation Front
Right Base Designator
Both a front and a rear insulation piece must be ordered now, instead of a set.
Both a front and a rear insulation piece must be ordered now, instead of a set.
10
10
591-221-343
Base Insulation Rear
Right Base Designator
Both a front and a rear insulation piece must be ordered now, instead of a set.
Both a front and a rear insulation piece must be ordered now, instead of a set.
17
17
450-003-567
Base Cross Tie
21
21
562-650-104
Support Clip For Base Insulation
22
22
562-930-236
Roll Pin ⅛" x 2"
30
30
512-200-050
Burner, Tubular Steel, Regular
31
31
450-003-362
Burner Shield
Left Base Designator
Number Of Burner Tubes
Regular: 32
For Pilot: 4
Add Two Additional Pilot Burners, And Remove Two Regular Burners
Number Of Burner Tubes
Regular: 32
For Pilot: 4
Add Two Additional Pilot Burners, And Remove Two Regular Burners
31
31
450-003-362
Burner Shield
Right Base Designator
Number Of Burner Tubes
Regular: 32
For Pilot: 4
Add Two Additional Pilot Burners, And Remove Two Regular Burners
Number Of Burner Tubes
Regular: 32
For Pilot: 4
Add Two Additional Pilot Burners, And Remove Two Regular Burners
