Main Gas Control Train Parts (5" W.C. Natural Gas)

Find Distributor in your area Distributor Locator
+ −

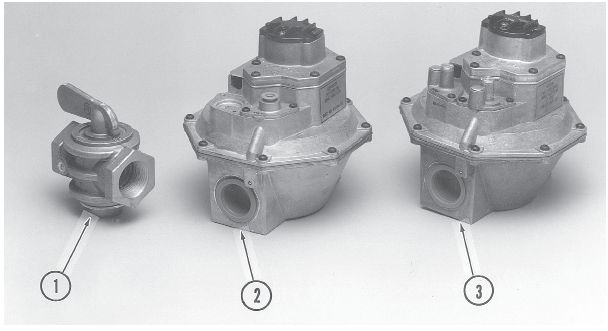

LGB-18 Main Gas Control Train Parts (5" W.C. Natural Gas) Drawing
Index
Part No.
1
1
511-246-330 Main Shut-Off Gas Valve, 1¼" N.P.T. Manual
With Downstream Pressure Tapping, ⅛" N.P.T.
1
1
511-246-300 Manual Main Shut-Off Gas Valve, 1½" N.P.T. Manual
With Downstream Pressure Tapping, ⅛" N.P.T.
2
2
511-044-192 Gas Valve Without Regulator 1-1/4” Honeywell V8943A1111
2
2
511-044-193 Gas Valve Without Regulator 1-1/2” Honeywell V8943A1129
2
2
383-300-426 1¼" LGB Conversion To V8943A Kit To Convert From V88 or V8843P To V8943A
2
2
383-300-427 1½" LGB Conversion To V8943A Kit To Convert From V88 or V8843P To V8943A
3
3
511-044-215 Combination Gas Control Valve, 1¼" N.P.T., 24 Volt With Low Fire Operator, High fire Operator, Main Pressure Regulator and ⅛" N.P.T. Downstream Pressure Tapping
3
3
511-044-216 Combination Gas Control Valve, 1½" N.P.T., 24 Volt, With Low Fire Operator, High fire Operator, Main Pressure Regulator and ⅛" N.P.T. Downstream Pressure Tapping
