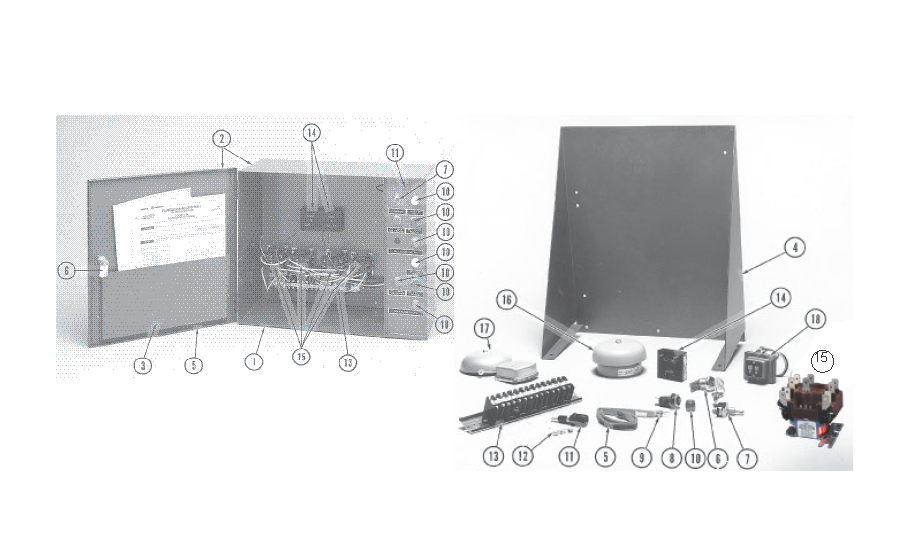

LGB-17 Flame Guardian WFFP-2 Control System With Prewired Control Cabinet (Pilot Proving/Main Flame Proving System) Drawing
Index
Part No.
1
1
383-300-190 WFFP-2 Flame Guardian Control System Complete With Cabinet, Internal Components, and Mounting Bracket
quantity 1
6
6
591-850-003 Door Lock and Key set 1 Set
Two Keys
7
7
511-624-575 Power on Manual Toggle Switch, SPST, 24 Volt or 120 Volt quantity 1
8
8
591-850-205 Indicating Lamp Holder, 24 Volt or 120 Volt quantity 8
9
9
591-850-365 Indicating Lamp Bulb, 24 Volt, Incandescent quantity 8
10
10
591-850-200 Indicating Lamp Lens, Lexan, Screw-On White, Call For Heat Power On
quantity 2
10
10
591-850-201 Indicating Lamp Lens, Lexan, Screw-On Blue, Gas Valve On quantity 2
10
10
591-850-210 Indicating Lamp Lens, Lexan, Screw-On Type-Green, Main Flame Proven Screw-On Blue, Pilot Proven
quantity 2
10
10
591-850-203 Indicating Lamp Lens, Lexan, Screw-On Red, Flame Failure quantity 2
11
11
591-850-180 Fuse Holder Panel, 24 Volt or 120 Volt quantity 1
12
12
591-850-183 Fuse, 24 Volt, 6 Amps quantity 1
13
13
512-050-026 Terminal Block Set quantity 1
14
14
570-350-370 Delay Timer, 24 Volt, 5 Min. Delay quantity 2
15
15
510-311-019 Control Relay, DPDT, 24 Volt Holding Coil quantity 4
16
16
511-802-615 Alarm Bell, 4” Dia., 120 Volt, Designed For Cabinet Mounting
17
17
511-802-621 Alarm Bell, 2” Dia., 12 Volt, Designed For Remote Mounting
18
18
511-802-620 Transformer, 120/12 Volt, For Use With 2” Dia. Alarm Bell
