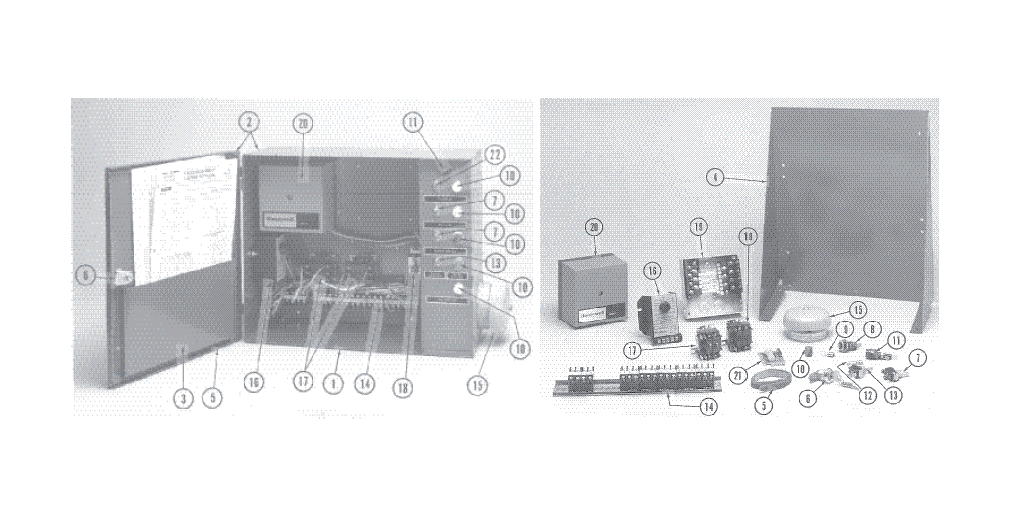

LGB-13 IRI / FM Flame Guardian WMBC-2A Control System (Pilot Proving/Main Flame Proving System) Drawing
Index
Part No.
6
6
591-850-003 Door Lock and Key set Two keys
quantity 1
7
7
511-624-575 Power on Manual Toggle Switch, SPST, 24 Volt or 120 Volt quantity 3
8
8
591-850-205 Indicating Lamp Holder, 24 Volt or 120 Volt quantity 5
9
9
591-850-370 Indicating Lamp Bulb, 24 Volt, Incandescent quantity 5
10
10
591-850-200 Indicating Lamp Lens, Lexan, Screw-On White, Call For Heat Power On
quantity 1
10
10
591-850-200 Indicating Lamp Lens, Lexan, Screw-On White, Call For Heat quantity 1
10
10
591-850-201 Indicating Lamp Lens, Lexan, Screw-On Blue, Gas Valve On quantity 1
10
10
591-850-202 Indicating Lamp Lens, Lexan, Screw On Yellow, Pilot On quantity 1
10
10
591-850-203 Indicating Lamp Lens, Lexan, Screw-On Red, Flame Failure quantity 1
11
11
591-850-180 Fuse Holder Panel, 24 Volt or 120 Volt quantity 2
12
12
591-850-183 Fuse, 24 Volt, 6 Amps quantity 2
13
13
511-624-576 Manual Toggle Switch, SPDT, 24 Volt or 120 Volt, Used For Alarm Silencing quantity 1
14
14
512-050-026 Terminal Block Set quantity 1
15
15
511-802-615 Alarm Bell, 4” Dia., 120 Volt, Designed For Cabinet Mounting quantity 1
16
16
510-350-430 Purge Timer Kit, 120 Volt, 0-5 Min. Adjustable Delay, Provides 5 Minute Enforced Wait-Purge In The Event of Flame Failure
quantity 1
17
17
510-311-012 Control Relay, DPDT, 120 Volt Holding Coil quantity 1
18
18
510-350-221 Control Relay, SPST, 24 Volt Holding Coil quantity 2
19
19
510-350-433 Flame Safeguard Control Mounting and Wiring Sub-base, Four Sides quantity 1
20
20
510-350-431 Flame Safeguard Burner Primary Control Flame Rectification, 120 Volt, 3 sec. Nominal Flame Response Timing, 10 sec. Timed Trial For Pilot, 10 sec. Timed Trial For Main Flame, Lock-Out on interlocking Contact Failure
quantity 1
21
21
510-350-432 Flame Safeguard Control Plug-in Pre-Purge Timer, 2 Sec. Purge quantity 1
22
22
511-624-578 Manual Toggle Switch, Used For Power On, Reset quantity 1
510-350-434 Flame Amplifier Not shown
510-350-435 Display Module Not shown
590-216-501 Corcom, 10VS1 Not shown
590-216-502 T-Filter, With Instructions Not shown
