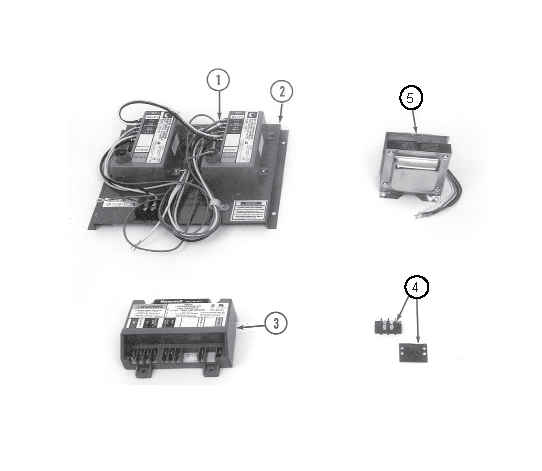

CSD - 1 Controls (Universal Control System)

+ −

Index

Part No.

CSD-1 Controls

511-330-086 Pilot Proving Module Not shown
quantity 1

511-330-085 Main Flame Proving Module Not shown
quantity 1

510-350-226 Impulse Relay Not shown
quantity 1

511-624-580 Push Button Switch Not shown
quantity 1

511-624-581 Lens Cover Not shown
quantity 1

Universal Controls IgnitionSensing Control Modules

511-330-097 Intermittent Pilot Ignition Module, 24 Volt Flame Sense Module
quantity 1

510-811-456 Universal Control System Includes Panel With Modules,Pilot Assembly, Wiring,Hardware and Instructions

511-330-097 Intermittent Pilot Ignition Module, 24 Volt quantity 1

512-050-013 Terminal Block quantity 1

511-842-364 Control Transformer, 120/24 Volt, 75 VA Foot Mounted With Circuit Breaker quantity 1

Light Bulb Not shown
quantity 1

510-933-195 Pilot Line Gas Pressure Regulating Valve, 3.5-7.0" W.C. Outlet Adjustment Range, ¼" N.P.T. Set At 6.0" W.C.

Not shown

Not shown">
