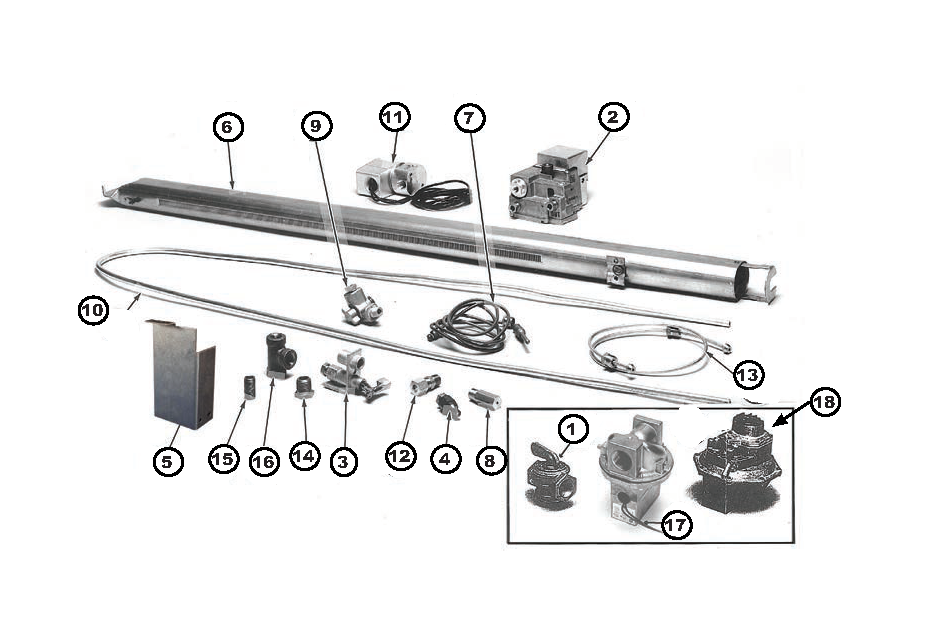

LGB-10 Thermally Supervised Pilot to Standard Controls Drawing
Index
Part No.
1
1
511-246-325 Main Shut-Off Gas Valve, 1" N.P.T.
1
1
511-246-330 Main Shut-Off Gas Valve, 1¼" N.P.T.
2
2
511-330-229 Pilot Switch Box With Built In Pilot Filter, ¼" CC Inlet and Outlet
3
511-330-186
3
511-330-186 Pilot Burner, Constant Burning, Thermally Supervised
511-330-186
3
3
383-300-410 Standing Pilot Burner Repair Kit, Propane Includes Pilot Burner & Orifice
383-300-411 Electronic Pilot Burner With Spark and Sense Connections Not Shown
Propane
4
4
560-528-957 Propane Pilot Orifice, .010 Dia., For Q327A
5
5
460-005-624 Pilot Burner Mounting Bracket For Both Pilot Burners
6
512-200-055
6
512-200-055 LGB Main Burner With Pilot Bracket
512-200-055
7
7
511-724-245 Thermocouple, 48" Long, For Q327A Pilot
8
8
560-528-976 LGB Main Burner Orifice, 2.40mm For Propane
9
9
511-246-340 Manual Shut-Off Pilot Gas Valve, ⅛" N.P.T. X ¼" CC
10
10
560-742-880 Pilot Line Aluminum Tubing, ¼" Dia. X 20" Long 2 Pieces Required
11
11
511-044-039 Pilot Line Solenoid Gas Valve, ¼" N.P.T., 24 Volt 22¾" Long
12
12
561-643-450 Pilot Line Union, ¼" CC Purchase Locally
13
560-742-860
13
560-742-860 Bleed Line Aluminum Tubing, ⅛" O.D. X 22¾" Long
560-742-860
14
14
560-807-360 Bushing, Black ¼" N.P.T. x ⅛" Purchase Locally
15
15
561-326-200 Nipple, Black ⅛" N.P.T Close Purchase Locally
16
16
561-541-199 Tee, Black ⅛" N.P.T. Purchase Locally
17
17
383-300-425 1" LGB Conversion To V8943A Kit Convert From V88/V8843P To 8943A
17
17
383-300-426 1¼" LGB Conversion To V8943A Kit Convert From V88 or V8843P To V8943A
18
18
511-044-346 Combination Gas Valve, 1" N.P.T., Propane
18
18
511-044-218 Combination Gas Valve, 1¼" N.P.T., Propane
