IRI / FM Control System

+ −

Index

Part No.

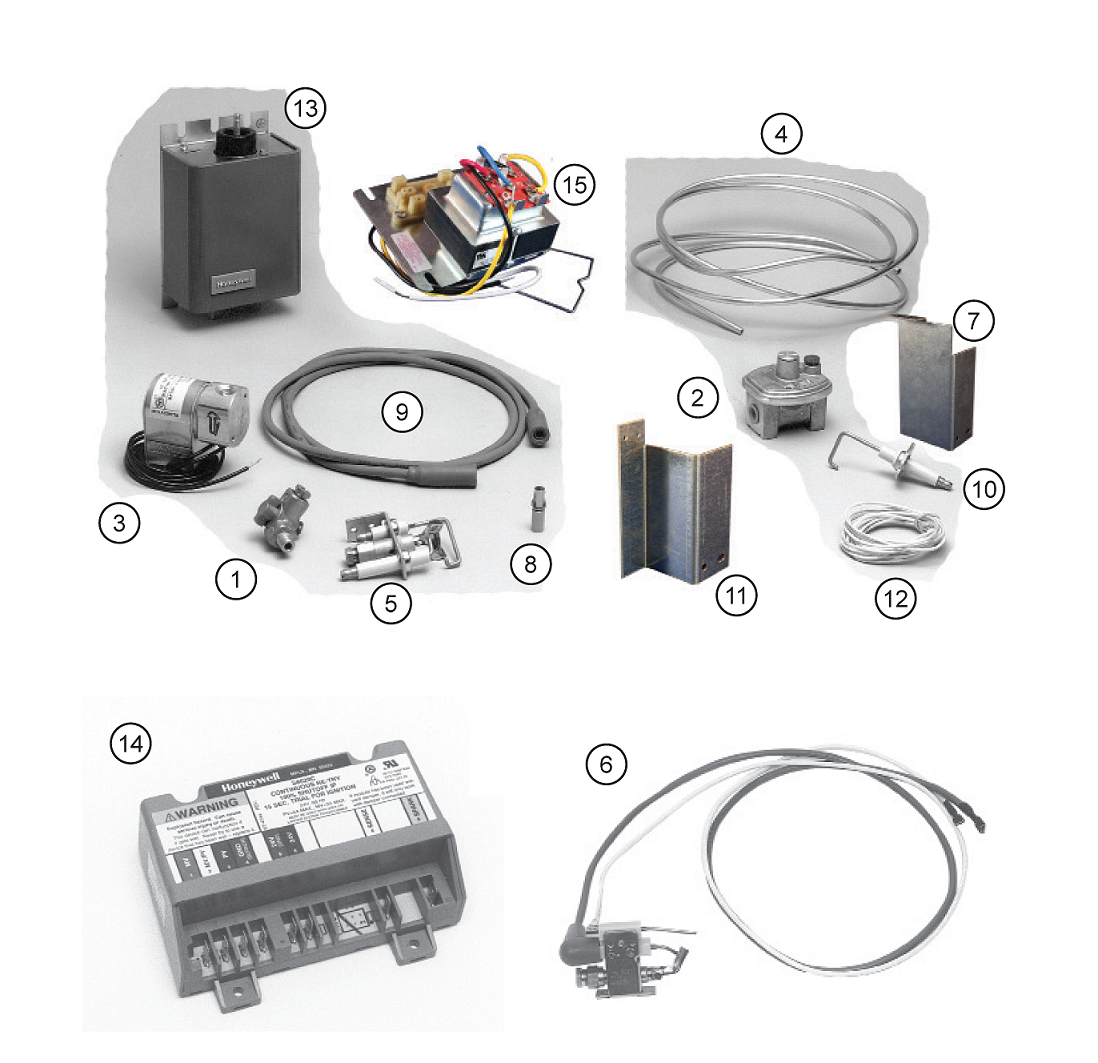

IRI and FM Pilot Line Gas Train Components

511-246-345 Pilot Line Manual Shut-Off Gas Valve, ¼" N.P.T. Male x ¼" N.P.T. Female Quantity: 1

510-933-195 Pilot Line Gas Pressure Regulating Valve, 3.5-7.0" W.C. Outlet Adjustment Range, ¼" N.P.T. Quantity: 1

511-044-040 Pilot Line Solenoid Gas Valve, Quick Opening, 120 Volt, ¼" N.P.T. Quantity: 1

560-742-915 Pilot Line Aluminum Tubing, ¼" O.D. x 100" Coil Quantity: 1

IRI and FM Pilots, Flame Sensing and Ignition Components

511-330-181 Combination Pilot Burner With Flame Rod, Ignition Electrode, and Natural Gas Orifice, 0.026" Dia. Quantity: 1

511-330-221 N/G PIN Pilot Burner Assembly With Pilot Burner, Orifice, Sensing Lead and Ignition Cable

460-005-624 Pilot Burner Mounting Bracket Quantity: 1

591-850-140 Rajah Connector, Female, Connects Sensing Cable To Q179C Pilot Quantity: 1

591-391-798 Ignition Cable, 36" Long, For Q179C Pilot Quantity: 1

511-724-274 Main Flame Sensor Quantity: 1

423-300-420 Main Flame Sensor Mounting Bracket Quantity: 1

590-849-236 Flame Rod Cable For Main Flame Sensor and Q179C Pilot Feet Required
Quantity: 4

511-802-625 Ignition Transformer, 120 Volt, 6,000 Volt Output
