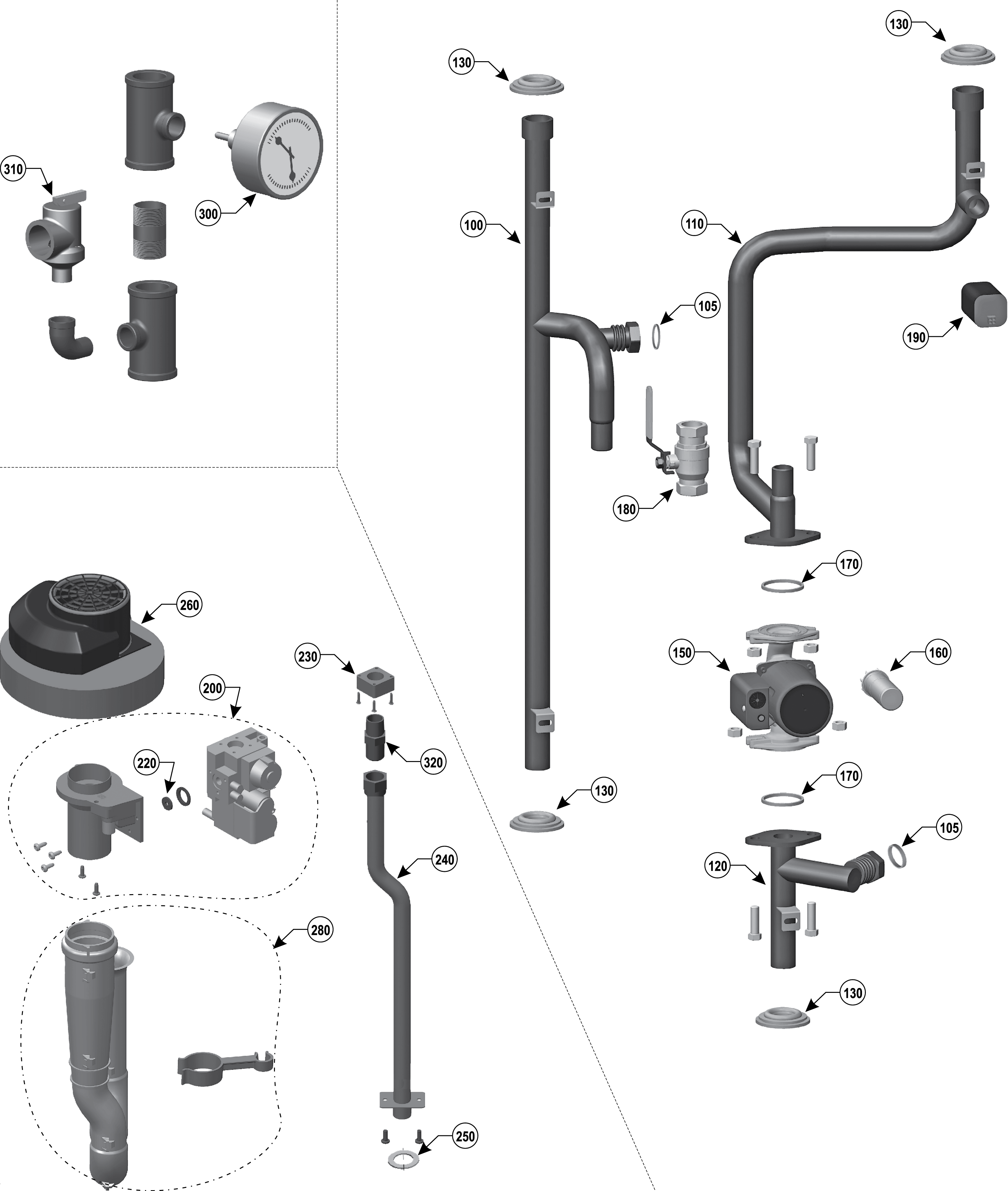

WM97+ 155 Piping Drawing
Index
Part No.
100
100
383-700-193 Boiler Supply Manifold With Hardware
105
105
590-300-036 Gaskets - To Seal Pipe To Heat Exchanger or Upper Pipe ToLower Pipe 0.96" ID x 1.19" OD x 0.06" thick
Boiler Supply and Return Gaskets
110
110
383-700-192 Boiler Upper Return Manifold With Hardware
120
120
383-700-191 Boiler Lower Return Manifold With Hardware
130
130
562-248-740 Pipe grommet
150
383-700-194
150
383-700-194 Boiler Circulator - Taco 0015 With Rotated Flange
383-700-194
160
160
511-405-143 Circulator Replacement Cartridge - For Taco 0015
170
590-317-543
170
590-317-543 Circulator Gasket for Taco 007
590-317-543
180
180
511-246-400 Internal Primary/Secondary By-Pass Valve
190
383-600-069
190
383-600-069 Low Water Cut-Off
383-600-069
200
383-700-196
200
383-700-196 Gas valve/venturi assembly Includes Gas Valve, Venturi, Gasket, and Hardware
383-700-196
230
230
563-910-031 Gas valve adapter block Gas Valve Adapter Block with O-ring and Screws
240
240
383-700-163 Gas flex Line Includes Gas Line, Seal, and Hardware
250
250
590-300-027 Gas pipe flange gasket
260
383-700-195
260
383-700-195 Blower
383-700-195
280
280
383-700-203 Air inlet silencer
300
380-000-000
300
380-000-000 Pressure & temperature gauge Temperature Gauge, 3" Dia., 0-75 PSIG, 60-320°F, Short Shank, Back Connection, ¼" N.P.T.
380-000-000
310
383-500-095
310
383-500-095 Relief valve
383-500-095
320
320
562-302-576 Gas flex line adapter N.P.T To Flare Adapter
