Heat Exchanger Assembly

Find Distributor in your area Distributor Locator
+ −

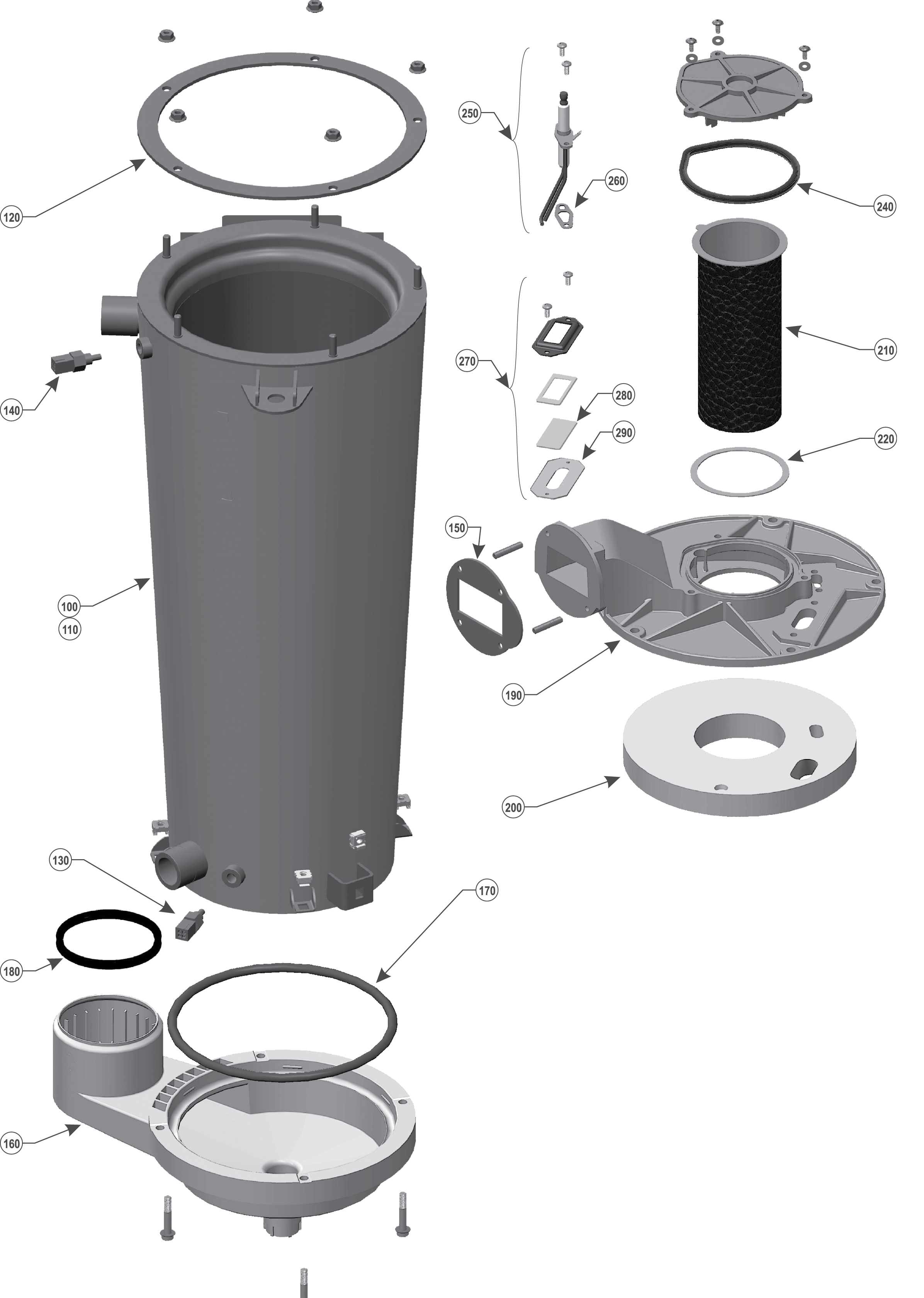

WM97+ 155 Heat Exchanger Assembly Drawing
Index
Part No.
100
100
383-700-197 Heat Exchanger - Only
383-700-198 Heat Exchanger With Condensate Dish Assembled Includes Condensate Dish, and Condensate Dish Gaskets, Temperature Sensors (2), and Hardware
Not Shown
110
110
383-700-180 Heat Exchanger Complete Includes Condensate Dish, Cover Plate, Burner, Igniter, Sight Glass, Reference Onlyractory, Water Sensors, Gaskets, Silicone, and Hardware
130
511-724-296
130
511-724-296 Heat exchanger water temperature sensor For Either Boiler Inlet or Outlet Water Sensor
511-724-296
140
511-724-296
140
511-724-296 Heat exchanger water temperature sensor For Either Boiler Inlet or Outlet Water Sensor
511-724-296
160
160
383-700-181 Condensate dish, gaskets, and hardware
170
170
590-300-039 Gasket To Seal Heat Exchanger To Condensate Dish
180
180
383-700-104 Condensate To Internal Flue Pipe Gasket
190
190
383-700-184 Heat exchanger cover plate, refractory and gaskets Includes Cover Plate, Reference Onlyractory, Silicone, and Gaskets
200
200
383-700-182 Refractory insulation & silicone sealant
210
210
383-700-183 Burner, gasket, and hardware Includes Burner, Gasket, and Hardware
220
220
383-700-208 Burner Gasket
383-700-202 Burner access cover, gasket and hardware Includes Access Cover, Gasket, and Hardware
Not Shown
240
240
590-318-053 Burner Access Cover Gasket
250
383-700-187
250
383-700-187 Igniter kit Includes Igniter, Gasket and Screws
383-700-187
260
260
590-300-034 Igniter To Cover Plate Gasket
270
270
383-700-185 Sight glass kit Includes Bracket, Glass, Gaskets, and Hardware
280
280
591-419-202 Sight Glass
290
290
383-700-112 Sight Glass Gaskets - Upper And Lower
590-318-008 Spark Suppressor For Igniter Not Shown
