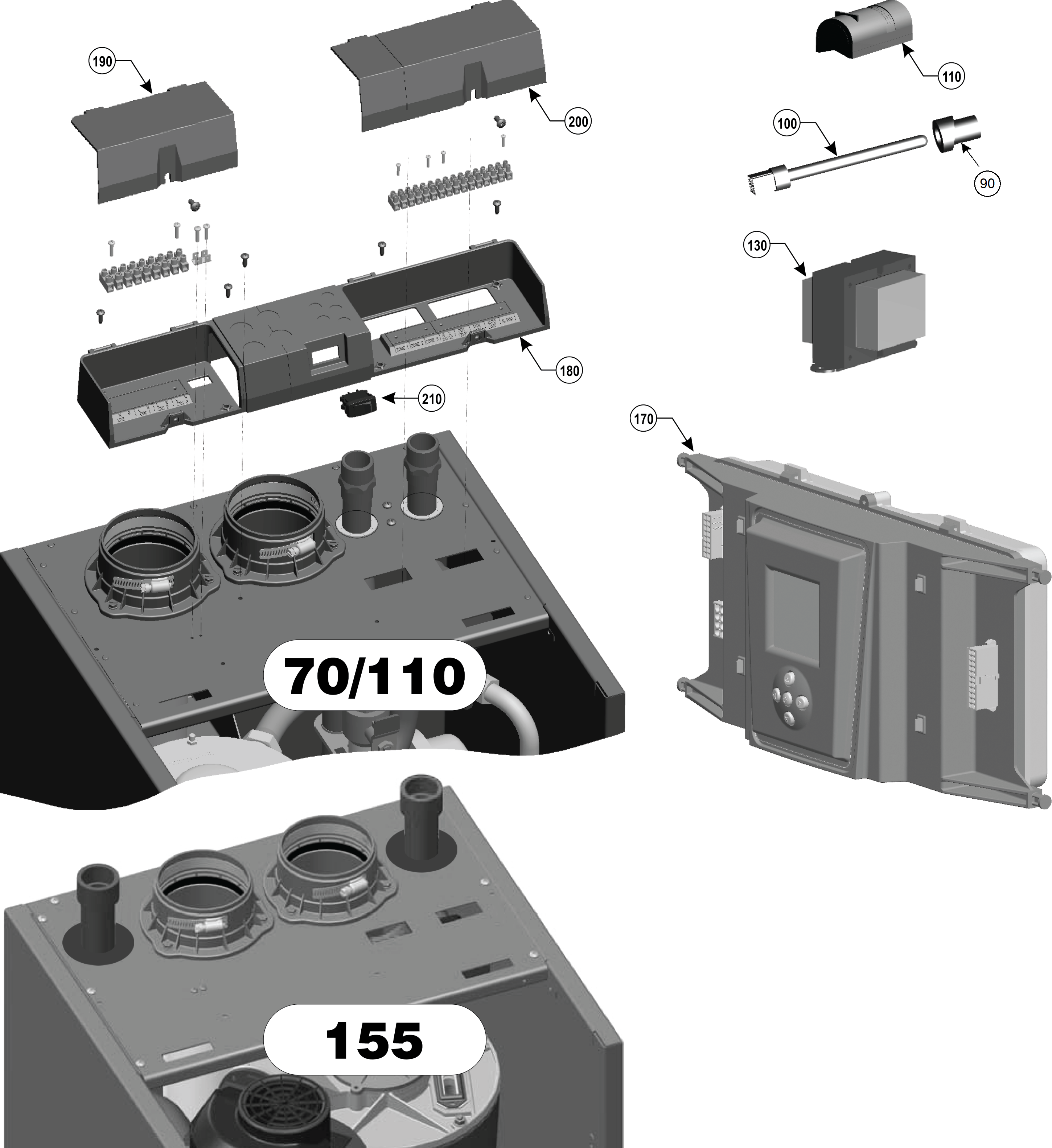

Controls / Electrical Assemblies
+
−
Index
Part No.
90
90
590-318-011
Gasket - flue temperature sensor
100
100
511-724-292
Flue Temperature Sensor
110
110
510-312-218
Outdoor temperature sensor
130
130
511-802-015
Control Transformer, 120/24 Volt, 50 VA, 50-60 HZ
591-391-969
High Voltage Harness, Left Side of Pod
Not Shown
9 PinTerminal Strip, Blower, Boiler Circulator, DHW Circulator
9 PinTerminal Strip, Blower, Boiler Circulator, DHW Circulator
591-391-968
Low Voltage Harness - Left Side of Pod
Not Shown
Supply/Return Sensors, Gas Valve, Flue Sensor, LWCO, Blower Control
Supply/Return Sensors, Gas Valve, Flue Sensor, LWCO, Blower Control
591-391-967
Low Voltage Harness
Not Shown
Right Side of Pod - 2 Terminal Strips, 10 Pin and 6 Pin, Transformer, DHW Sensor
Right Side of Pod - 2 Terminal Strips, 10 Pin and 6 Pin, Transformer, DHW Sensor
170
170
383-700-240
Control Assembly
Includes Ignition Control, User Display, Circulator Speed Control,Wire harnesses, Plastic, Gaskets, and label
180
180
595-000-033
Plastic Electrical Enclosures
190
190
383-700-173
Line Voltage Lid & Label - Left Side
200
200
383-700-174
Low Voltage Lid & Label - Right Side
210
210
511-624-645
On/off power switch
