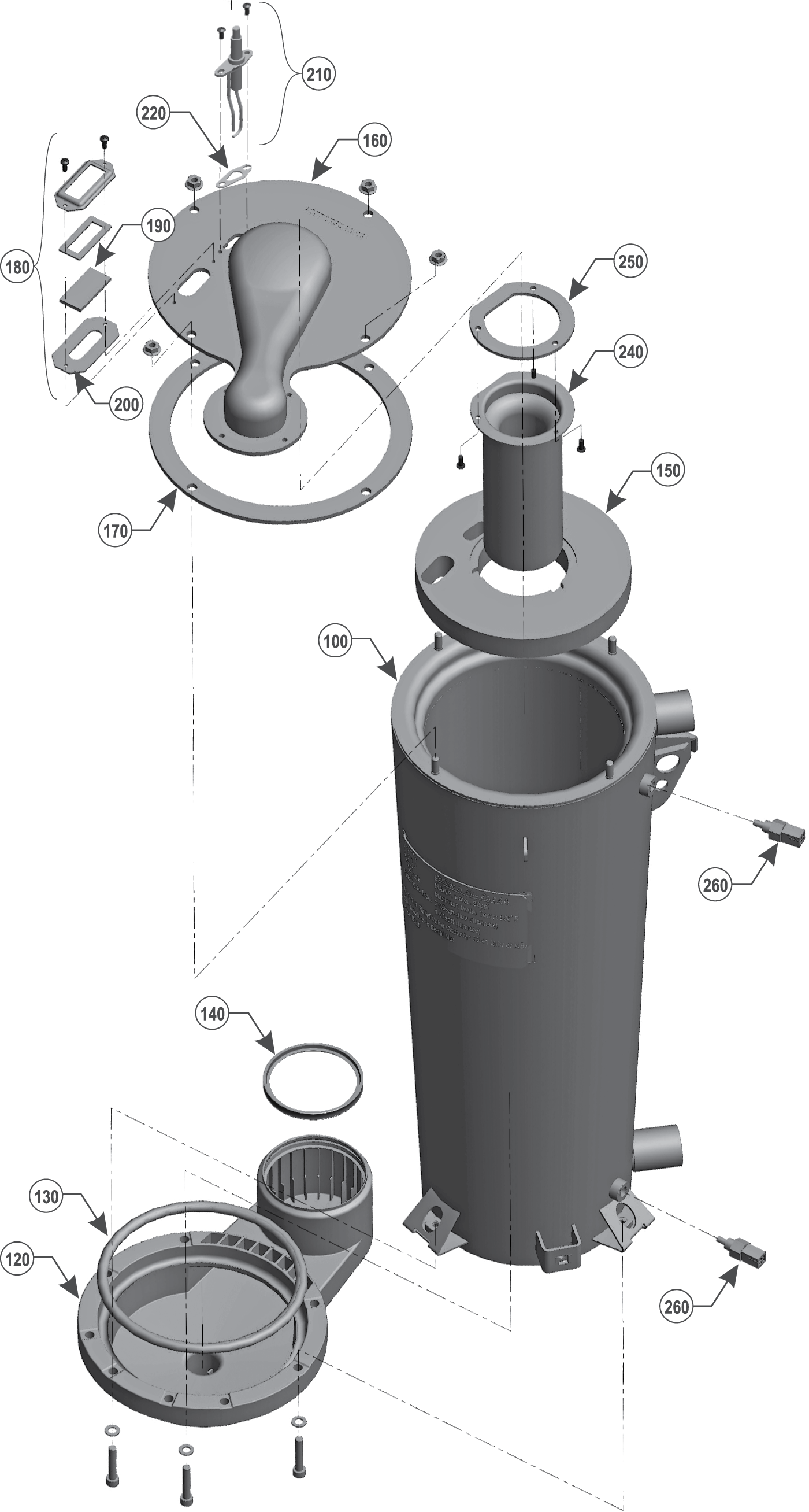

WM97+ 110 Heat Exchanger Assembly Drawing
Index
Part No.
100
100
383-700-254 Heat Exchanger
383-700-101 Heat Exchanger Complete Includes Condensate Dish, Cover Plate, Burner, Igniter, Sight Glass, Reference Onlyractory, Water Sensors, Gaskets, Silicone, and Hardware
120
120
383-700-102 Condensate dish, gaskets, and hardware
130
130
383-700-103 Gasket to seal heat exchanger to condensate dish and seal condensate dish to internal flue pipe
140
140
383-700-104 Condensate To Internal Flue Pipe Gasket
150
150
383-700-105 Refractory Insulation And Silicone Sealant
160
383-700-108
160
383-700-108 Heat Exchanger Cover Plate, Refractory, Silicone, And Gaskets Includes Cover Plate, Reference Onlyractory, Silicone, and Gaskets
383-700-108
170
170
383-700-109 Cover Plate Gasket
180
180
383-700-185 Sight glass kit Includes Bracket, Glass, Gaskets, and Hardware
190
190
591-419-202 Sight Glass
200
200
383-700-112 Sight Glass Gaskets - Upper And Lower
210
383-700-113
210
383-700-113 Igniter Kit Includes Igniter, Gasket and Screws
383-700-113
220
220
590-300-034 Igniter To Cover Plate Gasket
590-318-008 Spark Suppressor For Igniter Not Shown
240
383-700-106
240
383-700-106 Burner, Gasket, And Hardware Includes Burner, Gasket, and Hardware
383-700-106
250
250
383-700-107 Burner Gasket
260
511-724-296
260
511-724-296 Heat exchanger water temperature sensor For Either Boiler Inlet or Outlet Water Sensor
511-724-296
