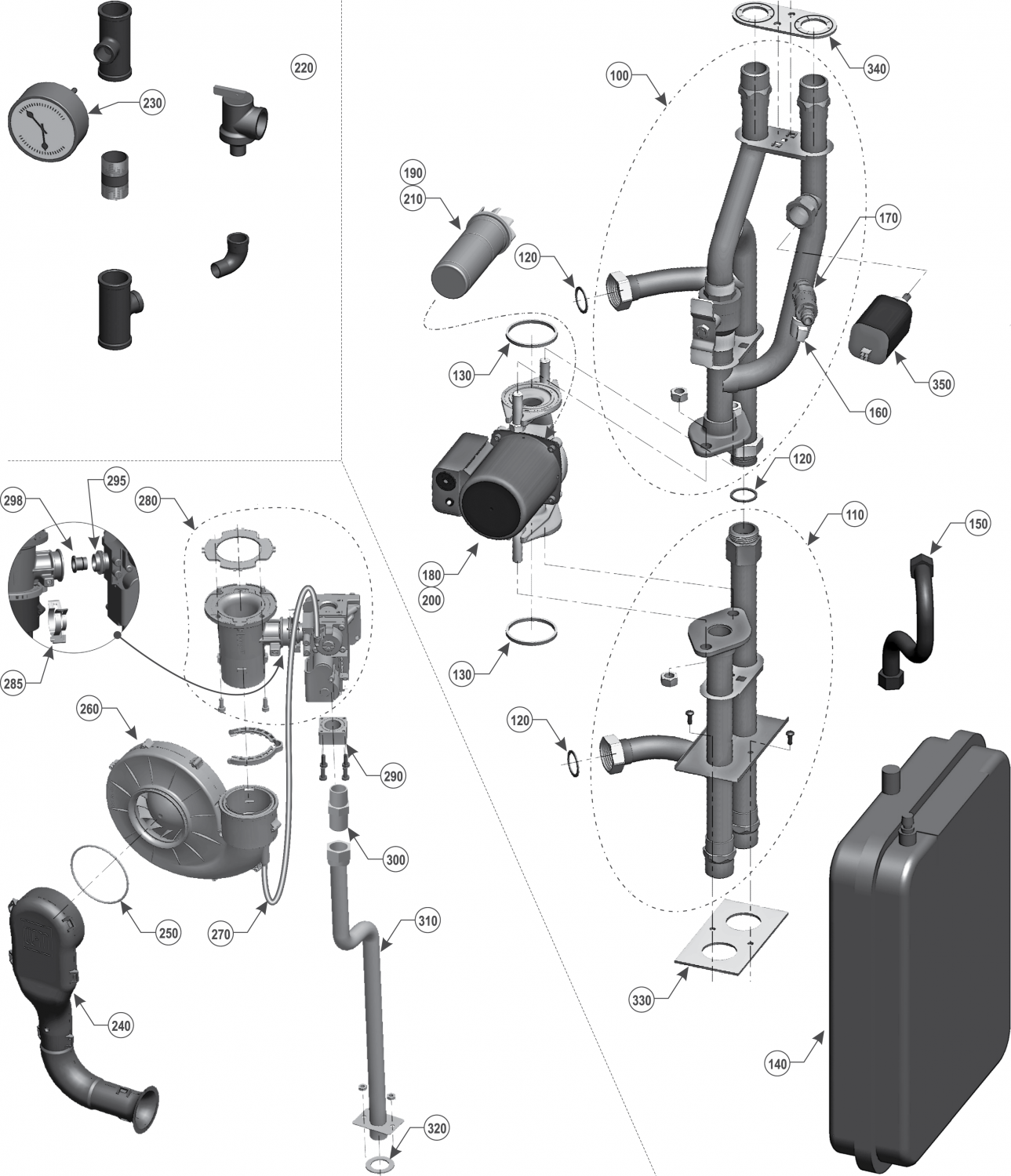

WM97+ 70 Piping Drawing
Index
Part No.
100
100
383-700-144 Upper Pipe Assembly and Gaskets 1 pump, 2 water
110
110
383-700-145 Lower Pipe Assembly and Gaskets 1 pump, 2 water
120
120
590-300-036 Gaskets - To Seal Pipe To Heat Exchanger or Upper Pipe ToLower Pipe 0.96" ID x 1.19" OD x 0.06" thick
130
590-317-543
130
590-317-543 Circulator Gasket for Taco 007
590-317-543
140
383-700-148
140
383-700-148 Expansion Tank - Pre-Charged To 12 PSI 12 Liter 3.2 gallons
383-700-148
150
150
560-900-022 Expansion Tank Line - Flared Fitting Stainless Steel Flex Line
160
160
511-246-399 Expansion Tank Shutoff Valve - Female N.P.T To Flare Manual Ball Valve
170
170
562-302-577 Female N.P.T To Male Flare
180
180
383-700-152 Taco 007 & Gaskets
190
190
511-405-142 Replacement Cartridge For Wet-Rotor 007 Circulator
220
383-500-095
220
383-500-095 Relief valve
383-500-095
230
380-000-000
230
380-000-000 Pressure & temperature gauge 3" Dia., 0-75 PSIG, 60-320°F, Short Shank, Back Connection, ¼" N.P.T.
380-000-000
240
240
383-700-155 Air Inlet Silencer
250
250
590-318-049 Air Silencer O-Ring
260
260
383-700-264 WM97+ 70 (Series 1&2), 110 (Series 1) Combustion System Replacement Kit Includes cover plate, cover plate refractory, burner, gas valve, venturi, blower, ignitor, control module assembly, wiring harnesses, silencer, LP orifice, and associated gaskets/screws
270
270
590-300-001 Silicone Tube - From Gas Valve To 90º Elbow Reference Onlyerence Tube To Connect Blower To Gas Valve
280
280
383-700-407 Gas Valve Includes Gas Valve Only
285
285
562-650-116 Gas Valve Retainer Clip
290
290
563-910-031 Gas valve adapter block Includes Block, O-ring, and Screws
295
295
590-318-045 Gas Valve Outlet O-Ring
300
300
562-302-576 Gas flex line adapter N.P.T To Flare Adapter
310
310
383-700-163 Gas flex Line Includes Gas Line, Seal, and Hardware
320
320
590-300-027 Gas pipe flange gasket
330
330
590-300-037 Gasket - Lower Pipe To Cabinet
340
340
590-318-050 Gasket - Upper Pipe To Cabinet
350
383-600-069
350
383-600-069 Low Water Cut-Off Taco-LTR024HV, Or Hydrolevel-45-1100
383-600-069
