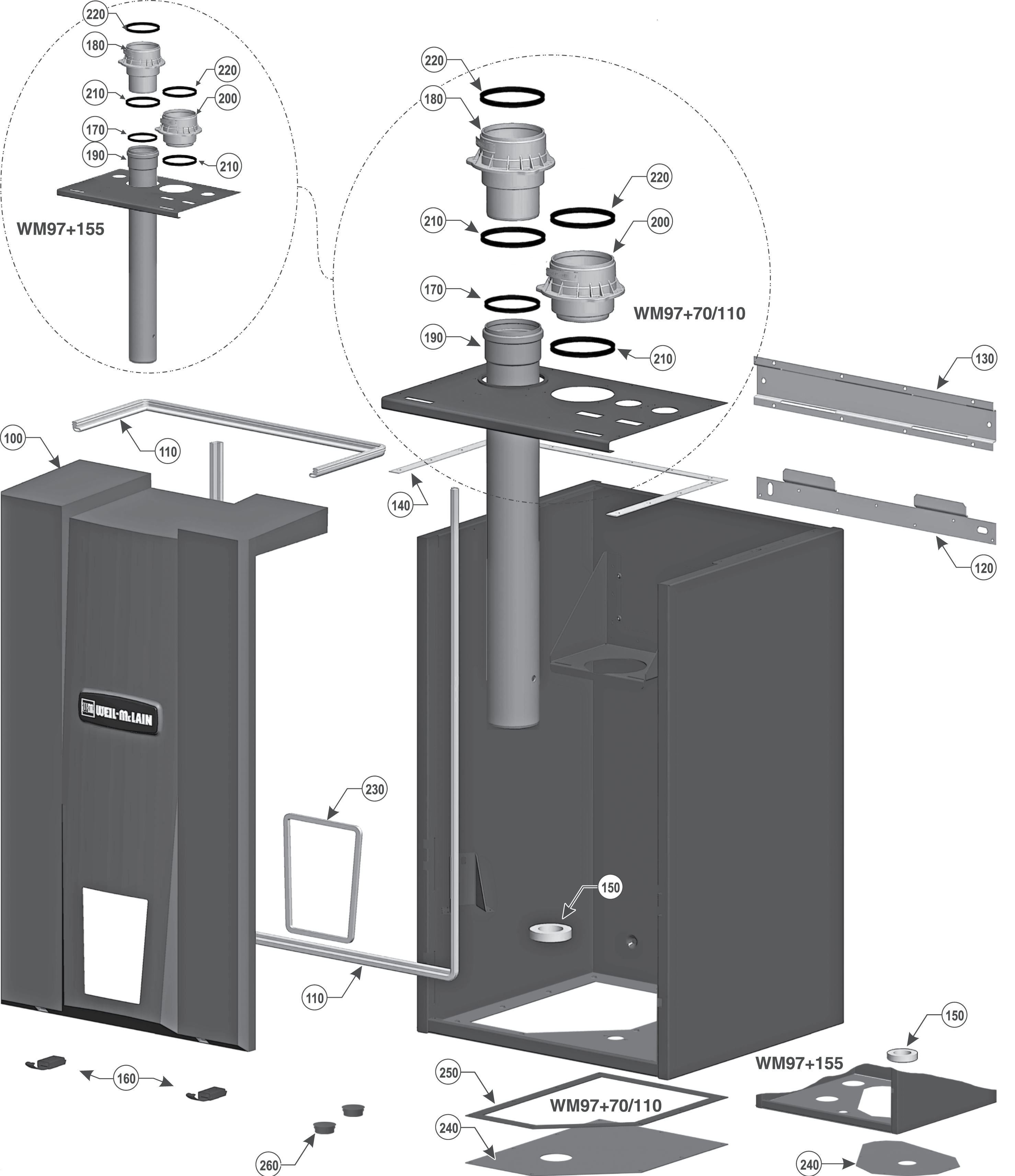

Jacket Parts

+ −

Index

Part No.

100

383-700-250 Front Door, Seals, Logo, and Labels

110

383-700-117 Seals For Front Door To Jacket

120

383-700-118 Wall Mount Kit Wall Side

130

383-700-119 Wall-Mount Bracket and Hardware Boiler Side

140

383-700-188 Gaskets - Top Panel To Cabinet Screwed Top

150

383-700-121 Gasket - Condensate Trap To Bottom Panel

160

383-700-122 Door latch Door Latch and Hardware

170

590-318-051 Internal Flue Pipe To Adapter Gasket - Fits Inner Diameter Of Flue Pipe Fits Inner Diameter of Boiler Flue Pipe

180

560-907-719 Flue pipe adapter

190

560-907-720 Boiler flue pipe

200

560-907-718 Air inlet adapter

210

590-300-031 Pipe Adapter To Cabinet Gasket - Applies To Air And Vent Adapters

220

590-318-052 Pipe Adapter To System Pipe Gasket - Inner Diameter Of Top Adapter Fits Inner Diameter of Top Adapter

230

590-300-028 Front Door To Display Seal - One seal Attached to Control Housing

240

383-700-252 Jacket Bottom Access Panel Kit Includes Panel, Item 250, and Screws

250

590-318-059 Bottom Access Panel Gasket

260

561-444-190 CWH Wire Harness Opening Plug

592-002-033 Touch Up Paint - Black - Low E, 4.5oz Can Not Shown

383-700-238 Condensate bracket 110 Includes Bracket, and Two Plastic Rivets
Not Shown
