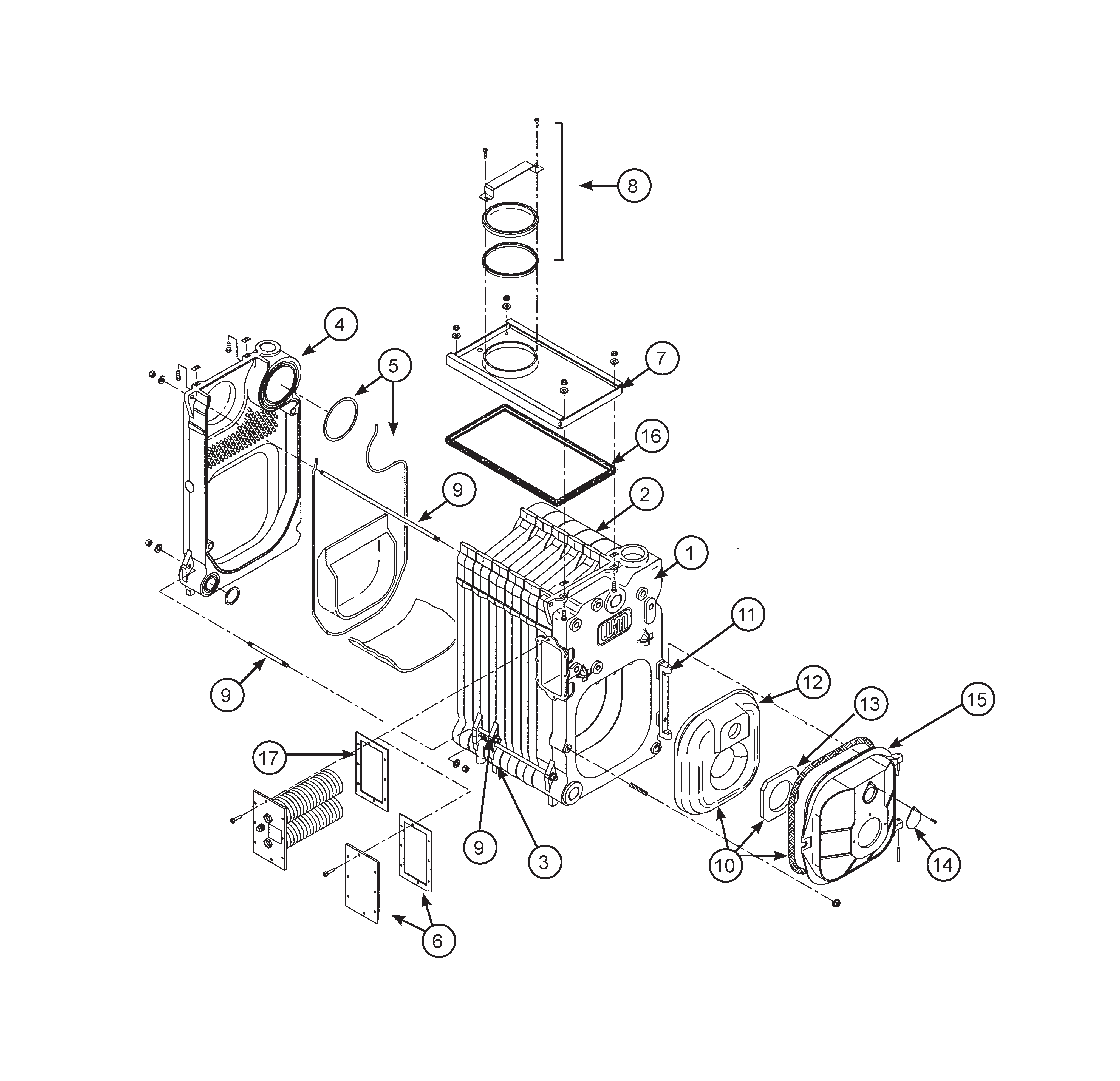

SGO-3 Section Assembly Parts Drawing
Index
Part No.
1
1
316-700-245 Front Section, Wide, 2½" Supply, #7011 Quantity 1
2
2
316-700-065 Intermediate Section, Narrow, #7015 Quantity 1
4
4
316-700-224 Section Back With 2½" Supply & 2" Return, #7027 - No Top Tapping Quantity 1
5
5
386-700-852 Rear Section Replacement Kit Includes: Seals, Rope, Adhesive and Collector Hood Fasteners
Quantity 1
5
5
386-700-855 Front Section Replacement Kit Includes: Seals, Rope, Adhesive and Collector Hood Fasteners
Quantity 1
6
6
389-900-103 Rectangular Tankless Cover Plate Kit With 8 Studs and Nuts and Tankless Gasket Rectangular
Includes 8 Studs, Nuts and Gasket
Quantity 1
386-700-665 Replacement Section Assembly Complete With Jacket and Tankless Coverplate Not Shown
Quantity 1
7
7
386-700-340 Collector Hood Kit Quantity 1
8
8
386-700-344 Flue Cap Kit Includes: Cap, Handle, Rope & Screws
Quantity 1
9
9
560-234-491 Tie Rod ½" x 10¾" Quantity 4
561-928-221 ½" Nut 2 Required Per Rod
Not Shown
Quantity 8
562-248-668 ½" Lock Washer 1 Required Per Rod
Not Shown
Quantity 4
386-700-355
386-700-355 Combustion Chamber Kit Includes: Rear & Front Reference Onlyractory, Blanket
Not Shown
Quantity 1
386-700-355
10
10
386-700-358 Burner Mounting Door Assembly Includes: Door, Port, Rope, & Pins
Quantity 1
11
11
381-355-797 Door Hinge Kit, Cast #7054 Includes 1 Hinge, and Roll Pin
Quantity 2
12
12
386-700-359 Door Refractory Quantity 1
13
13
591-222-115 Door Refractory Blanket Quantity 1
14
14
460-039-867 Observation Port Shutter Quantity 1
15
590-735-104
15
590-735-104 Door Seal ⅜" Rope, 55G Quantity 1
590-735-104
16
590-735-109
16
590-735-109 Glass rope, ⅜" For Collector Hood, 7' Quantity 1
590-735-109
591-706-214
591-706-214 Flue Brush - 42" Long Not Shown
Quantity 1
591-706-214
17
17
590-317-550 Gasket Tankless Heater Cover Plate 5¼" x 10"
560-340-577 Stud ⅜-16" NC-2A x 1.12 Long With ⅜-16" NC Brass Nut Tankless Heater Nut and Stud
386-700-850
386-700-850 Collector Hood Hardware Kit Includes: (4) ¼" X 1¼" Bolts, (4) Nuts, (4) Washers And (4) Tinnerman Nuts
Quantity 1
Quantity 1"> 386-700-850
590-735-250 ⅜" Rope , 79" Between Sections
