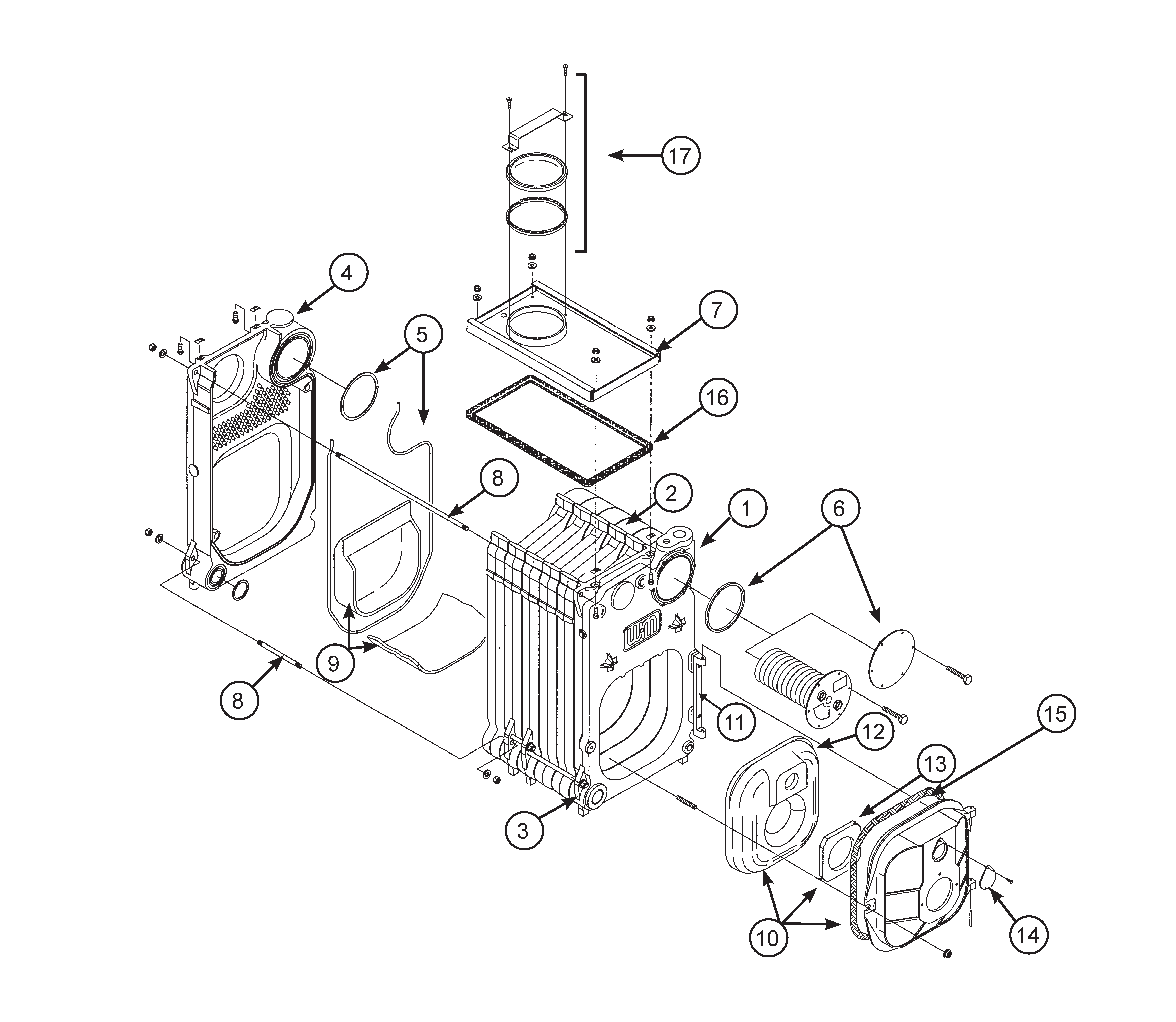

Section Assembly Parts

+ −

Index

Part No.

316-700-240 Front Section, With Envelope, Fits Cast # 7023 Quantity 1

316-700-065 Intermediate Section, Narrow, #7015 Quantity 1

316-700-226 Section Back With 2½" Supply & 1½" Return, #7027 Quantity 1

386-700-852 Rear Section Replacement Kit Includes: Seals, Rope, Adhesive and Collector Hood Fasteners
Quantity 1

386-700-855 Front Section Replacement Kit Includes: Seals, Rope, Adhesive and Collector Hood Fasteners
Quantity 1

386-700-336 Collector Hood Kit Quantity 1

560-234-491 Tie Rod ½" x 10¾" Tie Rod ½" x 12¼"
Quantity 4

Quantity 4">

561-928-221 ½" Nut 2 Required Per Rod
Not Shown
Quantity 8

562-248-668 ½" Lock Washer 1 Required Per Rod
Not Shown
Quantity 4

381-355-797 Door Hinge Kit, Cast #7054 Includes 1 Hinge, and Roll Pin
Quantity 2

386-700-344 Flue Cap Kit Includes: Cap, Handle, Rope & Screws

426-700-268 Flue Pipe Brackets

592-800-007 6" Dia. Bottom Elastomer Seal Not Shown

560-340-577 Stud ⅜-16" NC-2A x 1.12 Long With ⅜-16" NC Brass Nut Not Shown

Tankless Heater Nut and Stud

592-800-007 6" Dia. Bottom Elastomer Seal Not Shown

592-800-010 3" Dia. Bottom Elastomer Seal Not Shown

386-700-850 Collector Hood Hardware Kit Includes: (4) ¼" X 1¼" Bolts, (4) Nuts, (4) Washers and (4) Tinnerman Nuts
Not Shown

Not Shown">

590-735-250 ⅜" Rope , 79" Between Sections Not Shown
