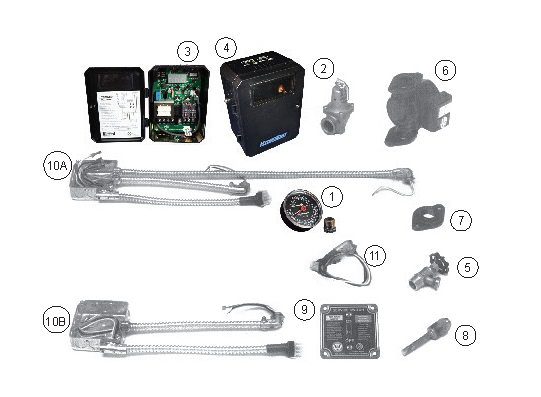

WTGO-3L Water Trim / Control Parts Drawing
Index
Part No.
1
380-000-000
1
380-000-000 Pressure & temperature gauge 60˚ - 360˚F 0-75 PSI, 3 1/8" Dia, ¼" NPT, Short Shank, With ¼" x ½" Reducing Bushing
380-000-000
2
383-500-095
2
383-500-095 Relief valve ¾" Male Inlet, ¾" Female Outlet
383-500-095
3
381-300-000
3
381-300-000 Electronic Aquastat High Limit or Combination High/Low Limit, With LWCO, High Limit 100˚ - 220˚, Low Limit 110˚ - 200˚, Adj. differential 10˚ to 30˚, Circulator Amps – 5.8 FA, Anticipator, .2 Amps
381-300-000
4
381-300-000
4
381-300-000 Electronic Aquastat High Limit or Combination High/Low Limit, With LWCO, High Limit 100˚ - 220˚, Low Limit 110˚ - 200˚, Adj. differential 10˚ to 30˚, Circulator Amps – 5.8 FA, Anticipator, .2 Amps
381-300-000
5
5
511-210-423 Drain Valve, ¾" N.P.T., 1½" Shank, Brass 1½" Shank
5
5
511-246-392 Drain Valve, ¼" x 1½" Shank
6
511-405-113
6
511-405-113 Circulator, 1/25 HP, 120/60/1 Motor, 1,750 R.P.M., .75 Amps Circulator, 1/25HP, 120/60/1 Motor, 175 RPM, 0.75 Amps
511-405-113
8
8
592-300-027 ¾" N.P.T. Well, 4¼" Long For Hydrolevel 3250 ¾" N.P.T. Well, 6¼"
383-500-126 Outdoor Sensor Kit For Hydrostat 3250 Not Shown
9
9
591-391-854 Junction Box Cover Assembly With Service Switch
10A
10A
591-391-849 Junction Box – Wiring Harness Assembly With Circulator Only
10B
10B
591-391-837 Wire Harness With Junction Box
11
591-391-850
11
591-391-850 Burner Harness Assembly 4 Pin Plug
591-391-850
426-700-268 Flue Pipe Brackets Set of 2
Not Shown
590-921-599 Tankless Heater – Water Boiler Includes: Heater, Gasket, Nuts and Studs
560-340-577 Stud ⅜-16" NC-2A x 1.12 Long With ⅜-16" NC Brass Nut 6 required
Not Shown
592-800-007
592-800-007 6" Dia. Bottom Elastomer Seal Not Shown
592-800-007
510-512-267 Balanced Draft Damper 7" Not Shown
Barometric Damper 6"
