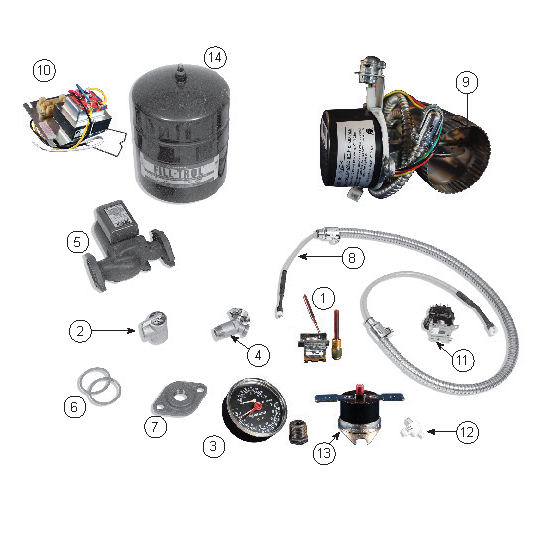

Water/Electrical
+
−
Index
Part No.
1
1
510-312-250
High Limit Temperature Control, Auto Recycle, 140-240° F, 30° Fixed Subtractive Differential, With ½” N.P.T Well
2
2
383-500-095
Relief valve
3
3
380-000-000
Pressure & temperature gauge
4
4
511-210-423
Drain Valve, ¾" N.P.T., 1½" Shank, Brass
5
5
511-405-113
Circulator, 1/25 HP, 120/60/1 Motor, 1,750 R.P.M., .75 Amps
5
5
511-405-115
Circulator, 1/12 HP, 120/60/1 Motor, 1,750 R.P.M.
6
6
381-354-530
Circulator Hardware Kit
Includes: 1 Flange, 2 Bolts, 2 Nuts, Diamond Gasket, ¾" N.P.T.
6
6
381-354-525
Circulator Hardware Kit
Includes: 1 Flange, 2 Bolts, 2 Nuts, Diamond Gasket, 1" N.P.T.
6
6
381-354-526
Circulator Hardware Kit
Includes: 1 flange, 2 bolts, 2 nuts, Diamond gasket, 1¼" N.P.T.
6
6
381-354-531
Circulator Hardware Kit
Includes: 1 Flange, 2 Bolts, 2 Nuts, Diamond Gasket, 1½" N.P.T.
7
7
381-354-530
Circulator Hardware Kit
Includes: 1 Flange, 2 Bolts, 2 Nuts, Diamond Gasket, ¾" N.P.T.
7
7
381-354-525
Circulator Hardware Kit
Includes: 1 Flange, 2 Bolts, 2 Nuts, Diamond Gasket, 1" N.P.T.
7
7
381-354-526
Circulator Hardware Kit
Includes: 1 flange, 2 bolts, 2 nuts, Diamond gasket, 1¼" N.P.T.
7
7
381-354-531
Circulator Hardware Kit
Includes: 1 Flange, 2 Bolts, 2 Nuts, Diamond Gasket, 1½" N.P.T.
8
8
591-391-795
Vent Damper Harness
9
9
381-800-475
Vent Damper Assembly, 5"
10
10
510-312-167
Combination Transformer and DPST Relay, 120/24 Volt, 40 VA
11
11
510-350-223
Plug-In Relay, DPST, 24 Volt Holding Coil
11
11
510-312-167
Combination Transformer and DPST Relay, 120/24 Volt, 40 VA
12
12
512-050-230
Rollout Thermal Fuse Element, 228°C
13
13
510-300-014
Spill Switch With Reset, 240° C
14
14
510-632-088
Fill-Trol Diaphragm Expansion Tank with O-ring and Machine Thread Connector to Fill Valve, Tank Only
14
14
510-632-089
Fill-Trol Diaphragm Expansion Tank with O-ring and Machine Thread Connector to Fill Valve, Tank Only
